GRASSTRACK & LONGTRACK MONOSHOCKS

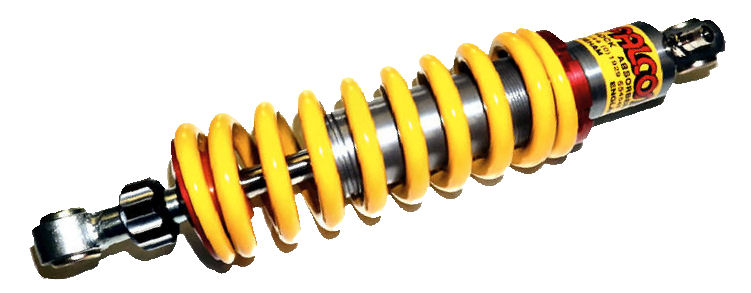

The falcon grasstrack monoshock is full rebuildable as well as adjustable rebound damping are unit also features a hydraulic topping out system.

The shock absorber can be built with different lengths starting at 290mm, 296mm, 302mm, 308mm and 314mm centres, witch is achieved by fitting different lengths of rod eye.

Shock travel is up to 50mm

Shock eyes are fitted with self aligning bearings and are 24mm wide using a 10mm diameter bolt.

Spring rates available are 320, 360, 390 and 440lb/inch.

Special units can be built to order



PRICES FOR GRASSTRACK MONOSHOCK:

Aluminium bodied monoshock   .......................................................................
Special units can be built but may cost extra depending on specification.
£401.40
This price is for a single standard production shock absorber complete with spring and mounting bushes, and include for DELIVERY and VAT, to UK mainland addresses only.
There may be a delivery surcharge to off shore islands, and remote areas.

Deliveries can be arranged to most countries in the world via DHL.
Please enquire regarding the cost of shock absorbers delivered to other countries.
E&OE prices current 01 January 2016
