CLASSIC ROAD AND ROAD RACING SHOCKS |
|
|
|
Our range of shock absorbers for Road Race Motorcycles has been developed from our successful motocross designs, so toughness and durability have already been built in. The fully rebuildable units are all oil damped and gas assisted and use modern low-friction materials on all seals, bushes and piston rings. Aluminium has been used for as many components as possible and represents a considerable weight saving over our steel bodied versions. For example, aluminium units for a Manx Norton weigh just 1.96Kg per pair complete. (4.31 lbs) We use a unique three stage damping system on compression and rebound which, if necessary, can be fine-tuned to suit personal requirements. Shock lengths are available from 11" to 14.9" centres in 1/4" steps, with 3" of travel and 12" to 16.9" centres in 1/4" steps, with 4" of travel. Certain lengths are available with rebound damping adjuster. We always hold a wide range of springs to match your rider weight. All our aluminium units are clear anodised with satin black powder coated springs, with the exception of the Manx Norton shocks which are black anodised and our 4" travel shocks which have chrome plated springs. |
 |

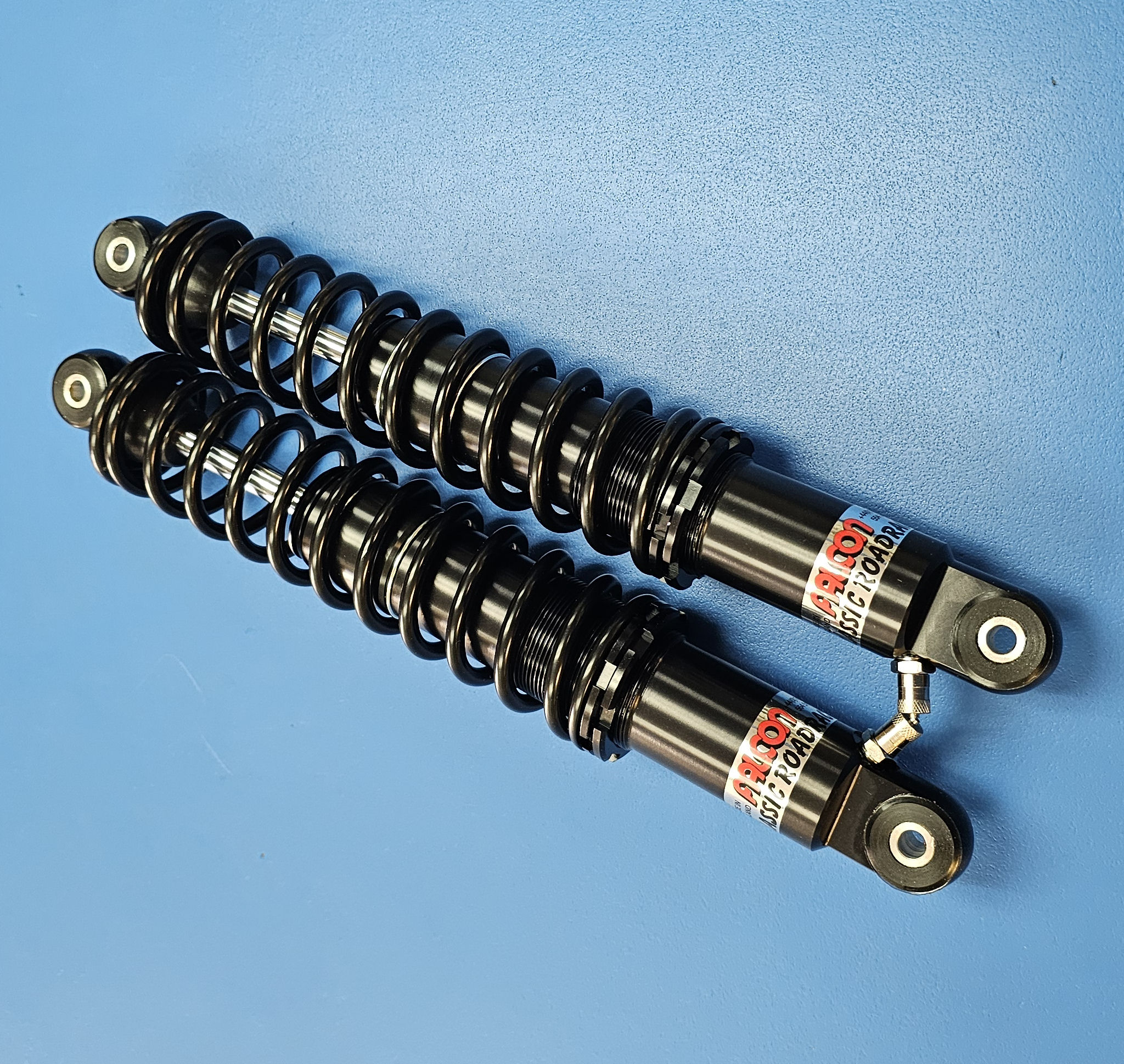

Shocks for Manx Norton. 13.4" centres, 3" Travel, 70lb springs and 8x19mm bushes with the shock bodies anodised black. |  |
Standard Seeley Mk2 shocks. 13.9" centres, 70lb springs, 10mm or 3/8" mounting bushes. | |
 |
Rebound damping adjuster shocks for a Ducati - Standard Frame. 12.0" centres, 3" travel, 80lb spring and 12mm rubber bushes. |  |
Steel shocks for a Laverda Jota. 14.4" centres, 4" Travel, 100lb springs and 12x22mm bushes. | |
 |
Close up of rebound damping adjuster. Minimum shock lengths are 12.9" for the 3" travel shocks and 13.9" for the 4" travel shocks. |  |
K4 Honda Shocks . 13.25" centres, 4" travel, 70lb springs, 16mm top mount and fork end lower fixing. | |
| For any further Information please contact the factory where we will be happy to discuss your needs. | ||||
|
PRICES FOR CLASSIC ROAD AND ROAD RACE SHOCKS: |
||
| Aluminium bodied shocks ............................................................................ Aluminum units for Honda K4 with fork ends .................................................. Matchless G50 with fork ends ....................................................................... Aluminium bodied shocks with rebound damping adjusters .............................. (Damping adjuster units are not available with fork ends) Special units can be built but may cost extra depending on specification. |
£426.00 £468.00 £492.00 £648.00 |
|
| These prices are for a pair of standard production shock absorbers complete with springs and mounting bushes, and include for DELIVERY and VAT, to UK mainland addresses only. There may be a delivery surcharge to off shore islands, and remote areas. Deliveries can be arranged to most countries in the world via DHL. Please enquire regarding the cost of shock absorbers delivered to other countries. E&OE prices current 01 January 2023 |
||
 |
 |
 |
|
|
||
|
