LONG TRAVEL SHOCKS FOR HONDA TLR 200 & 250



Honda TLR Long Travel Shocks

In the past some customers have requested longer travel shock absorbers for their Honda TLR 200 and 250's

We have produced a light weight shock absorber for these Honda's in aluminium with screw collars on the shock bodies for preload adjustment.

A standard or super light damping system is available as an option and they feature a full 4.3/4" inch (120mm) of shock travel, over 1" inch (25mm) more than some of the standard Honda shocks.

They come complete with fixing buttons and are available in 15.9inch centres as standard with a range of springs to suit all rider weights.  Centres can be reduced to 14.9" in 1/4" steps if required

The aluminium components are anodised clear and the springs powder coated in red.

As used by Matt Sleep to win the Sammy Miller trials championship in 2013 & 2014.

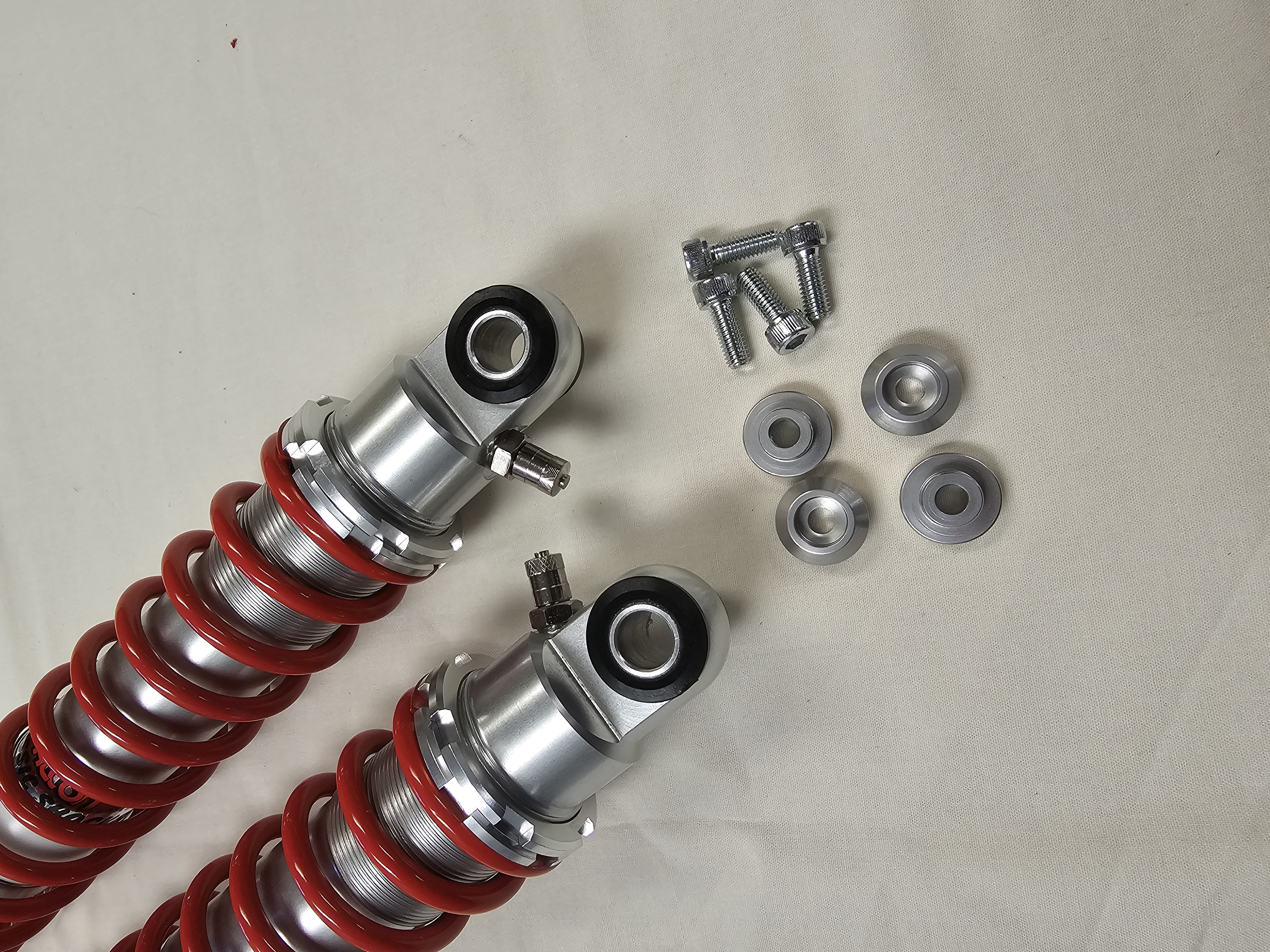

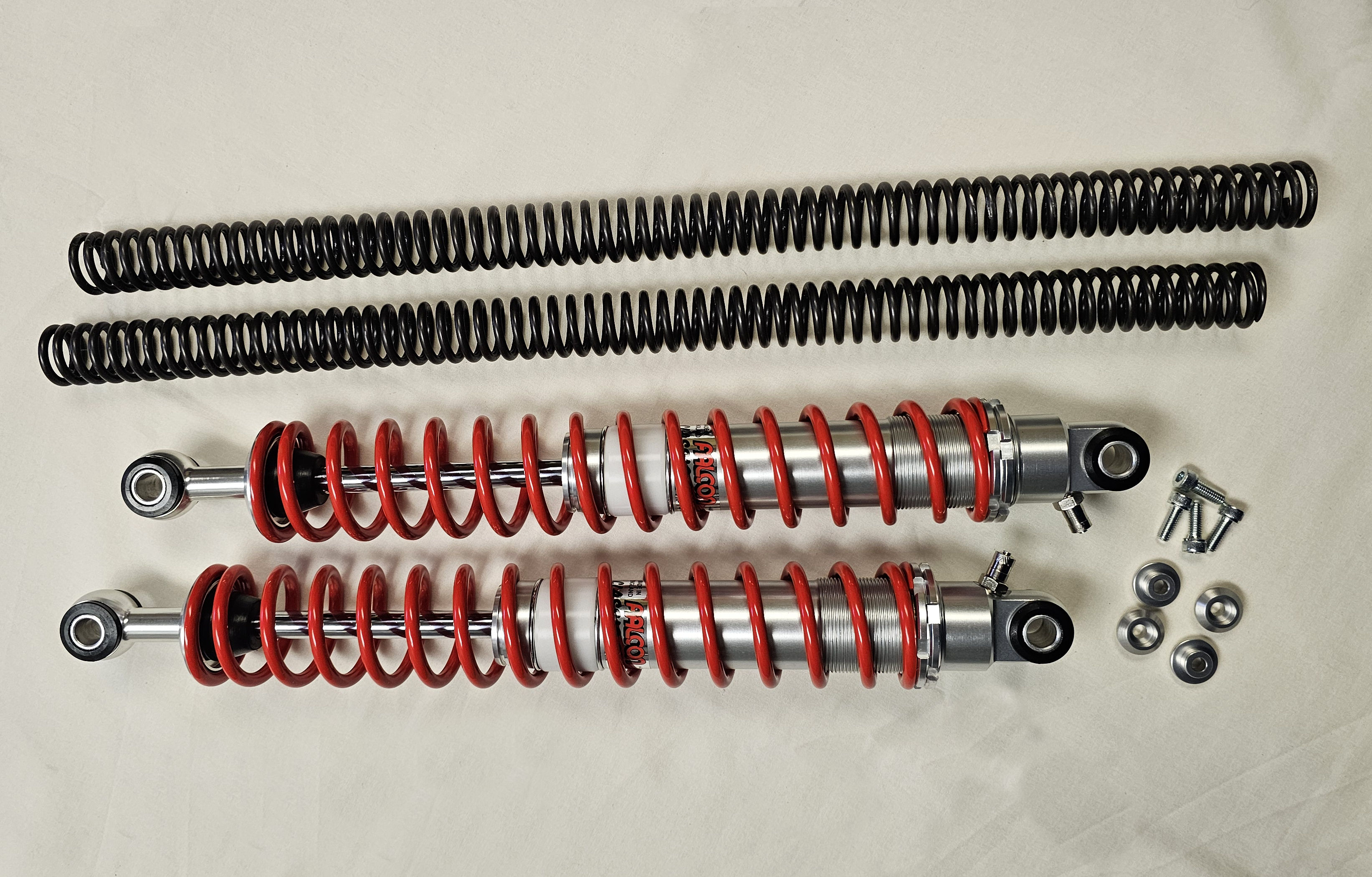

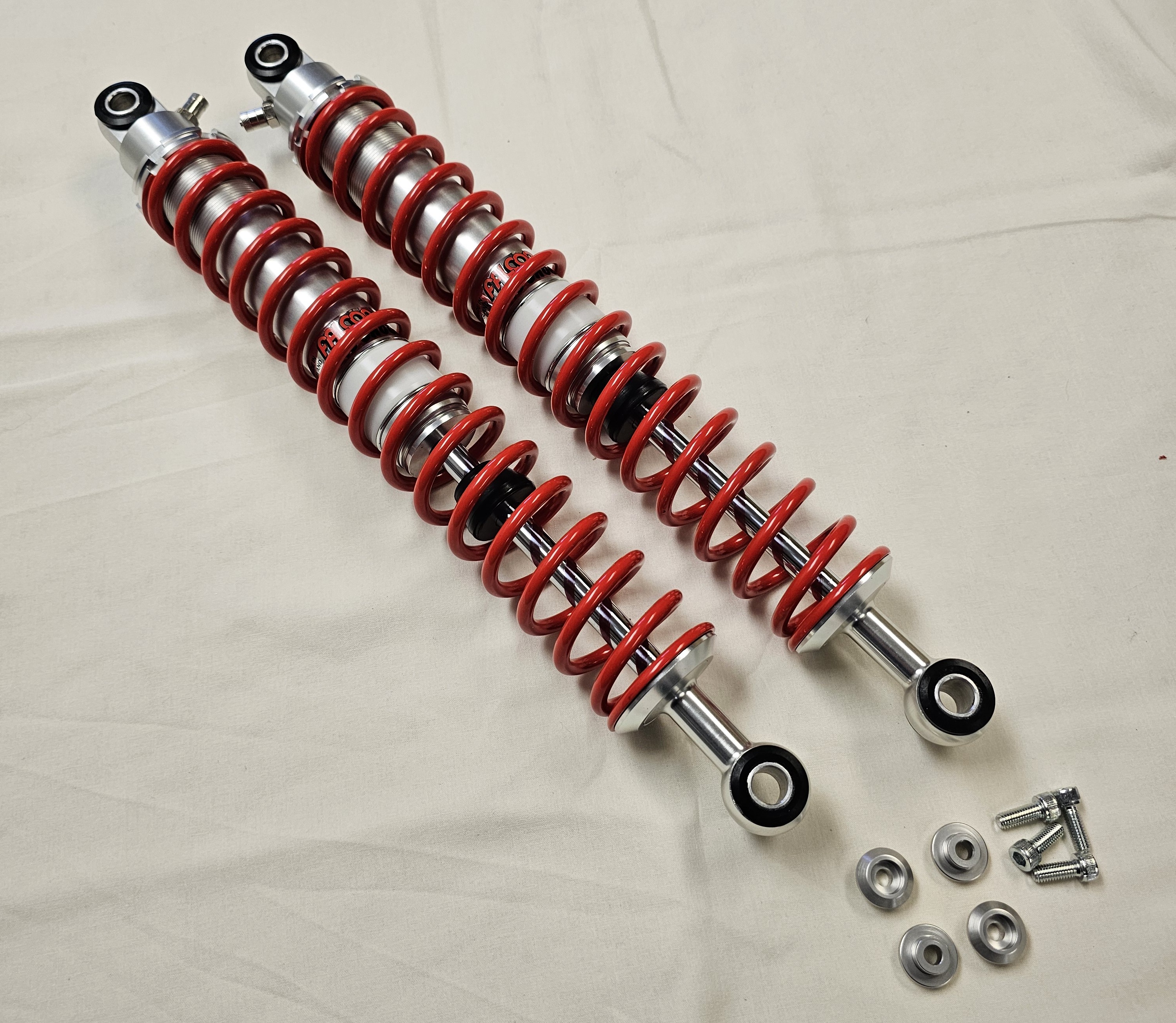

Honda TLR Long Travel Shocks   Honda TLR with out spring   Honda TLR Preload Adjusters



NOTE: The colours of the shock absorbers and springsvyou receive may vary from the pictures above, due to variations in anodising & painting processes. These pictures are used as a representation of the anodising and paint finish of our current shock absorbers.
